DIY Kit Package
- Complete materials package
- Trussed hoops or cables
- Hoops spacing 42"-72"
- All fasteners & hardware included
- 6mm 4-layer polycarbonate panels
- Galvanized steel frame (14 gauge)
- Optional lengths
- Self-installation
All or Partially Assembled Labor
- We can set the posts
- We can build the hoops
- We can mount the panels
- We can install the trim
- We can build the vents and doors
- We can frame the end walls
- We can install the ridge cap
- We can completely install

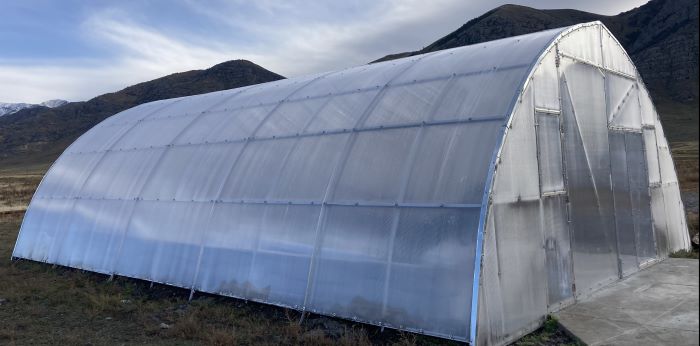

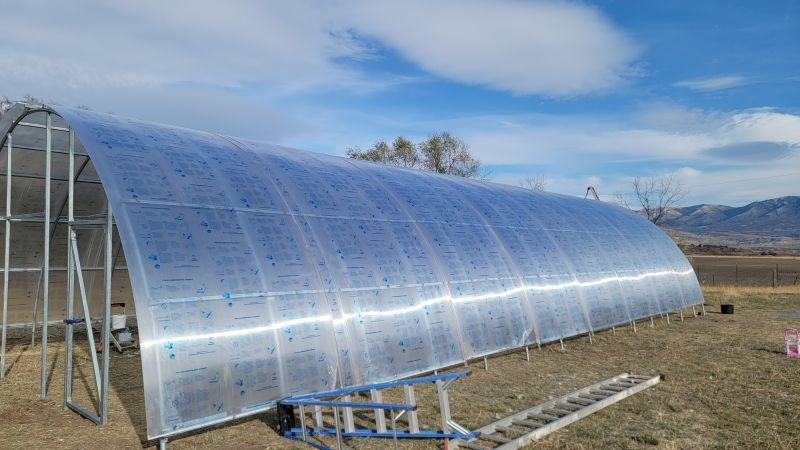

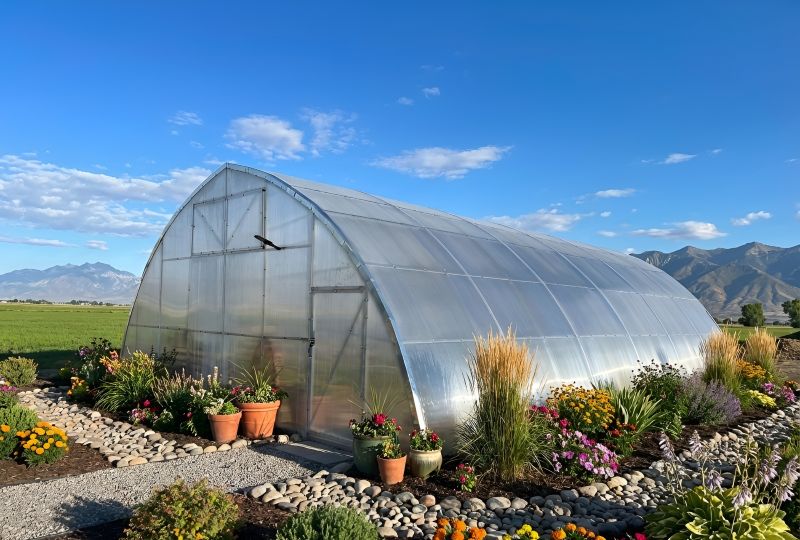

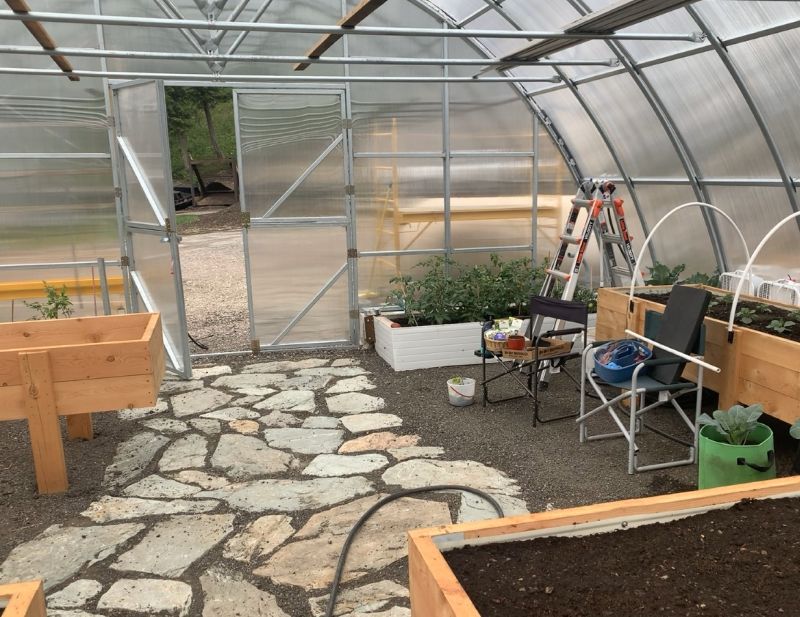

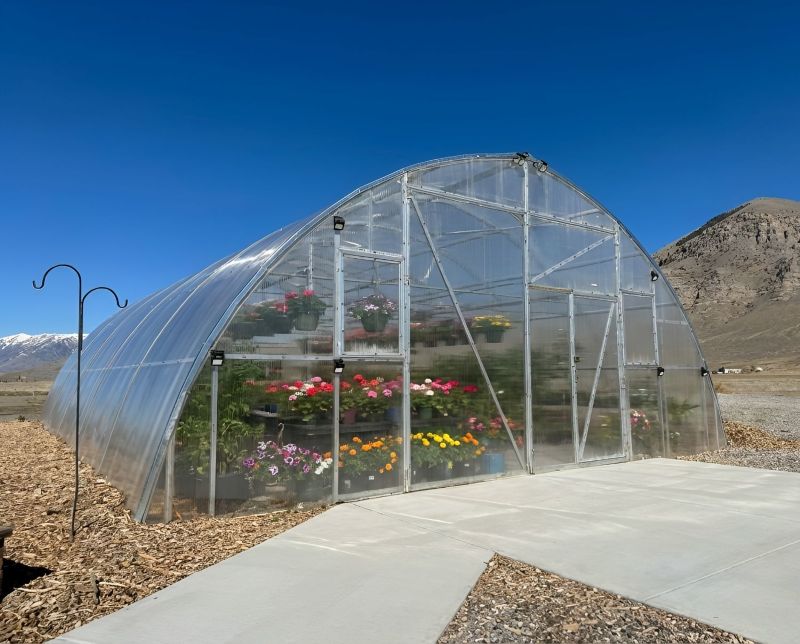

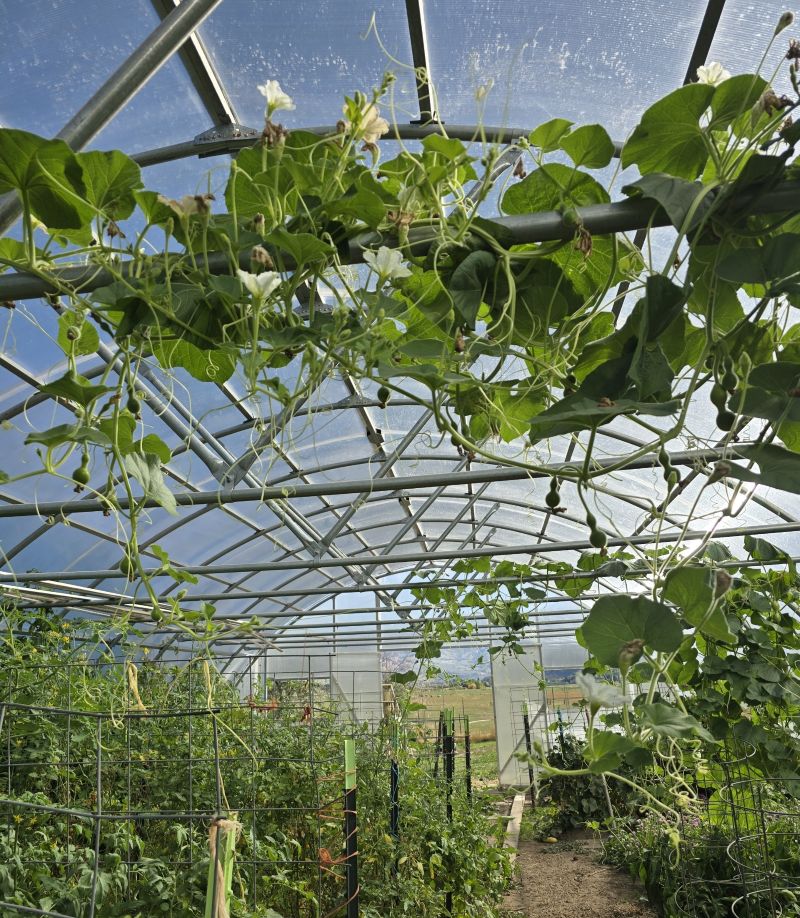

See Our Greenhouses in Action
Technical Specifications
Dimensions
Typically, 27' wide by 38' long. You can have any length you prefer. You can use 42" hoop centers or up to 80" centers to optimize your steel and minimize costs.
Frame Material

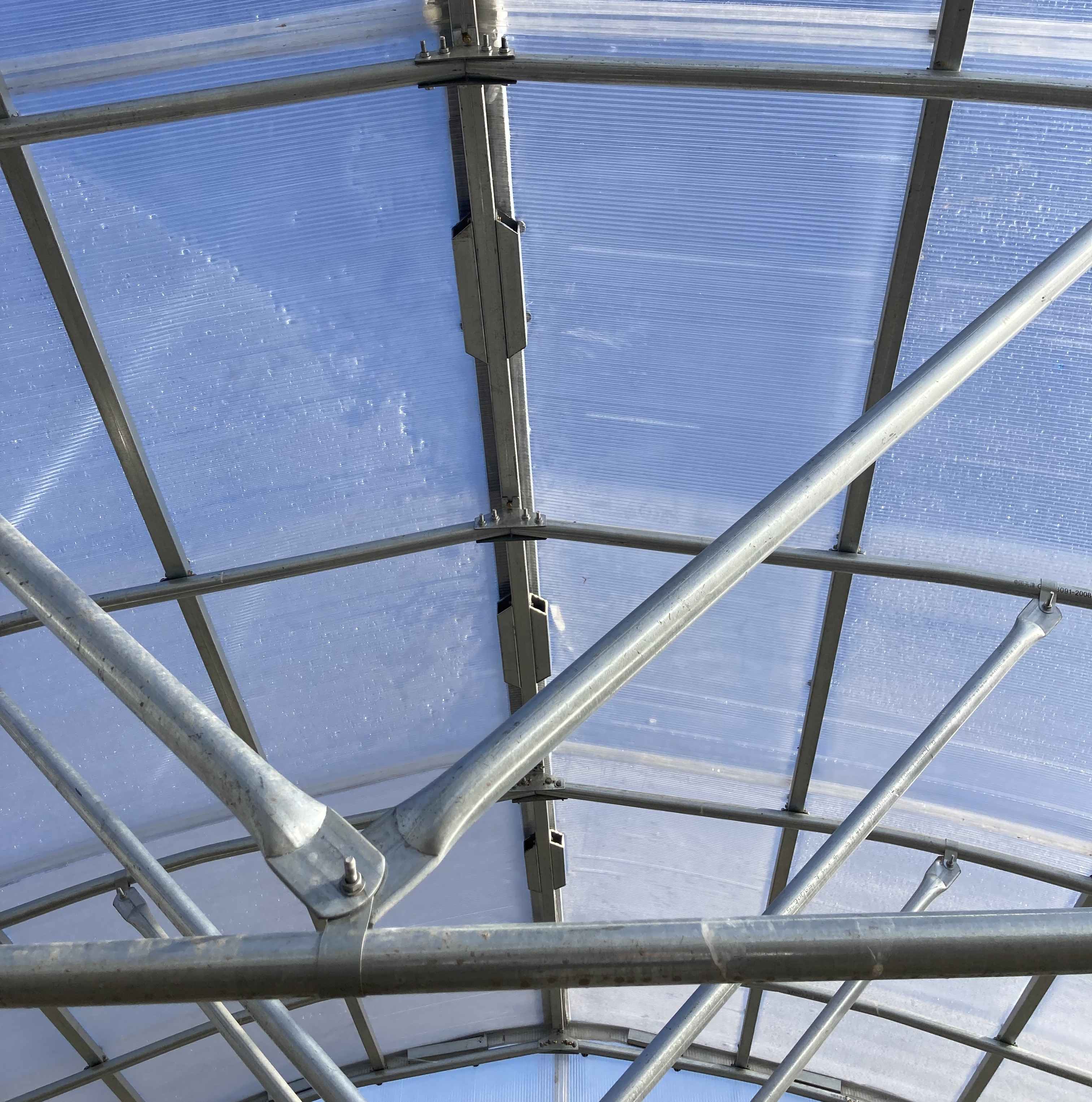

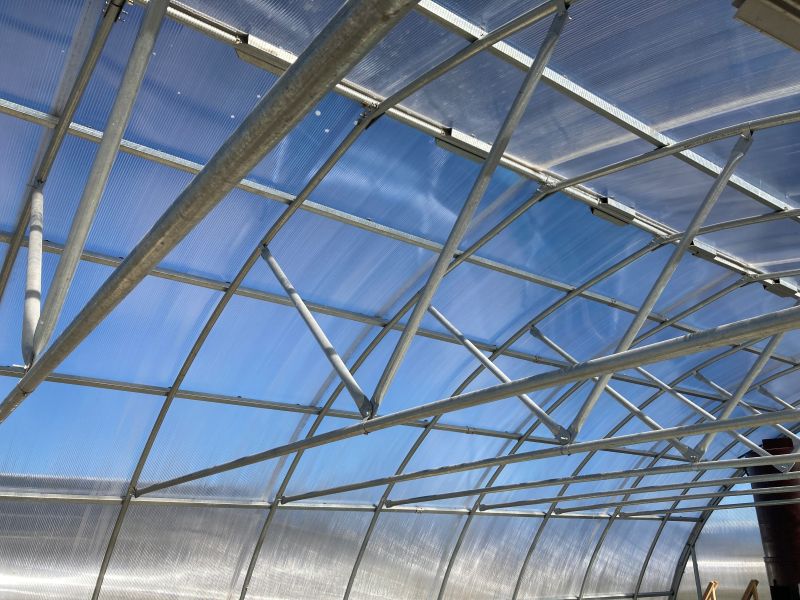

All steel is 14 guage (2 mm wall thickness). Hoops are 1-7/8" (48 mm) exterior diameter with trussing at 1-9/16" (40 mm). End wall square tubing is 40 mm and purlins are 30 mm. All steel is galvanized.
Glazing

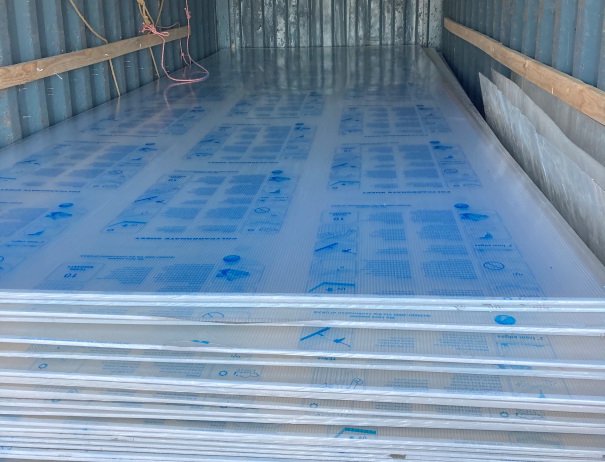

Best in industry 6mm 4-layer polycarbonate panels (6.9' x 19') with an effective overall insulation value of R-2.2. It is impact resistant with a 1-2 mm diameter hail (based on velocity) rating.

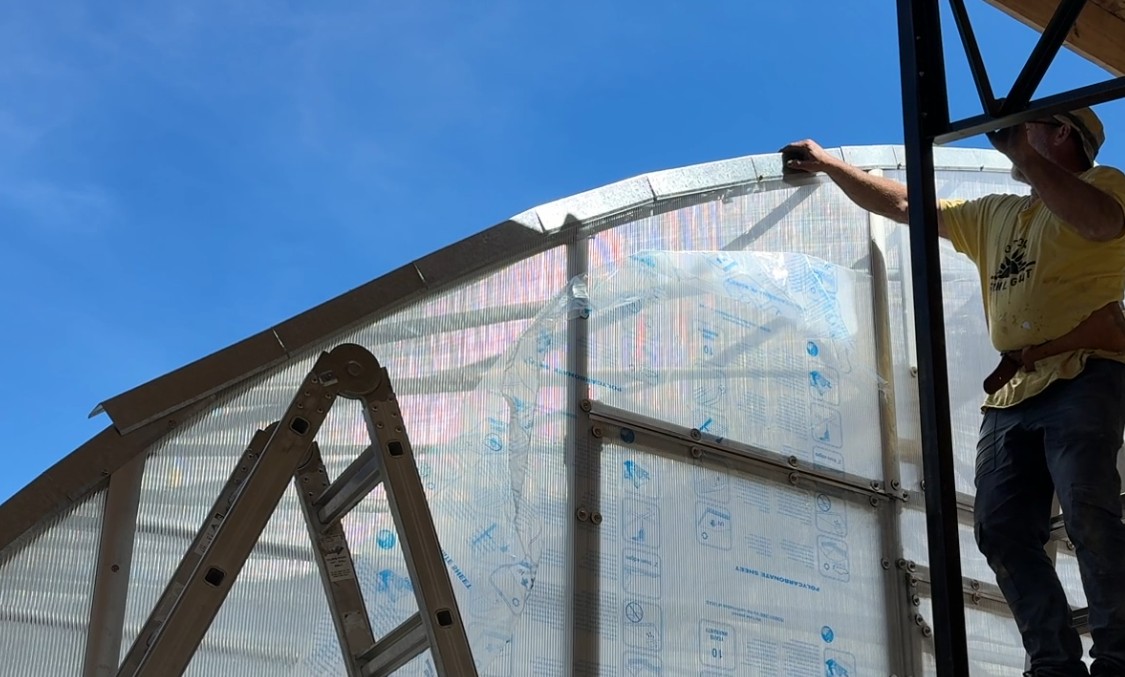

Trim

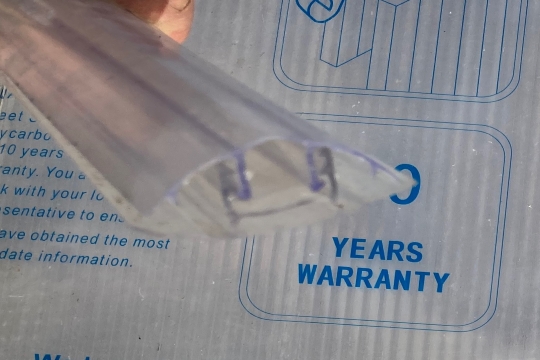

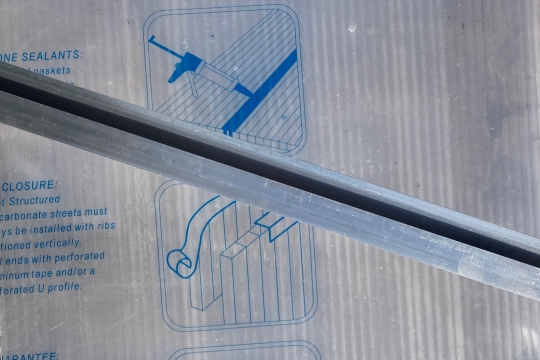

We provide all the trim for construction including J-channel trim around open channels in your vents and doors, butt joints for your panels, ridge trim and end wall flashing.
Hardware
The kits come with all fasteners and brackets to assemble your greenhouse including self drilling screws and different kinds of connectors.
Building Permits
Typically, laws allow jurisdictions to provide you with agricultural related building permits that do not require adherence to structural building codes.
Warranty
The polycarbonate has a 10 year warranty against cracking and SIGNIFICANT yellowing. The steel is likewise warranteed against defects for 10 years.
Construction
Working with steel is challenging. Building these greenhouses requires experience. We provide construction services for all or part based on your needs.

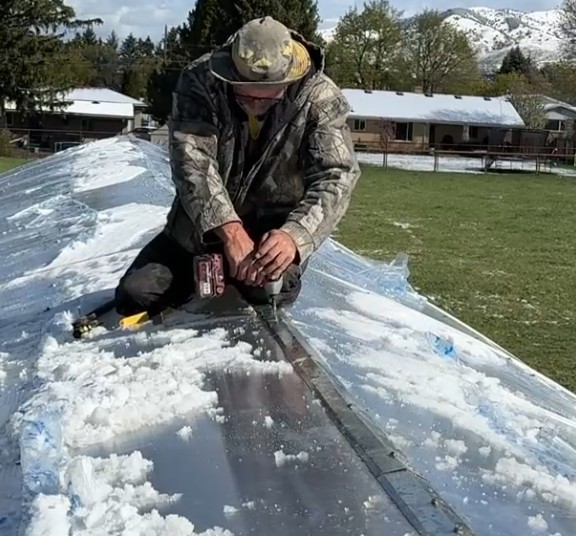

Installation (Ridge)
This video shows how to install the ridge cap for this greenhouse design.
Installation (Vents & Doors)
This video shows how to build and install doors and vents.
Installation (Polycarbonate)
This video shows how to install the polycarbonate panels.
Installation (Tools)
This video shows the recommended tools for construction.

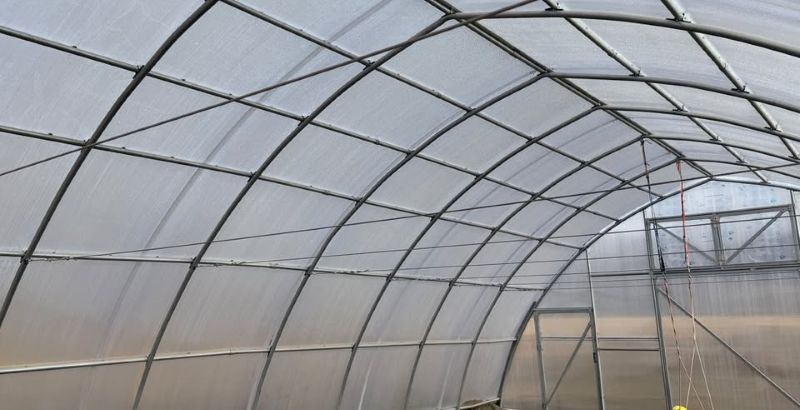

The ~1,030 ft2 Cable trussed 27'X38' kit on ~57" centers for $9,200
| Benefits: Lower cost but you have to buy cable and crimps. Cons: Weaker structure. Here are the contents of this kit: | Quantity |
|---|---|

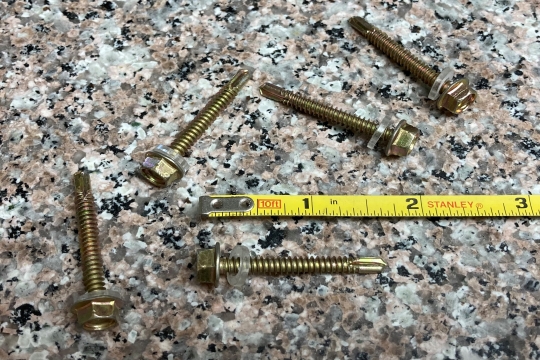

| 2" Self-Drilling Screws | ~360 |
| Small Self-Drilling Screws | ~2,500 |

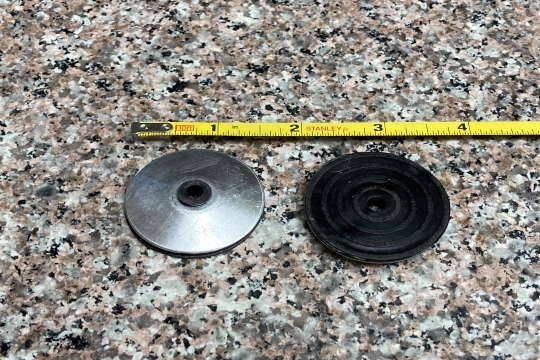

| 1.2" Gasketed Aluminum Washers | 1000 |

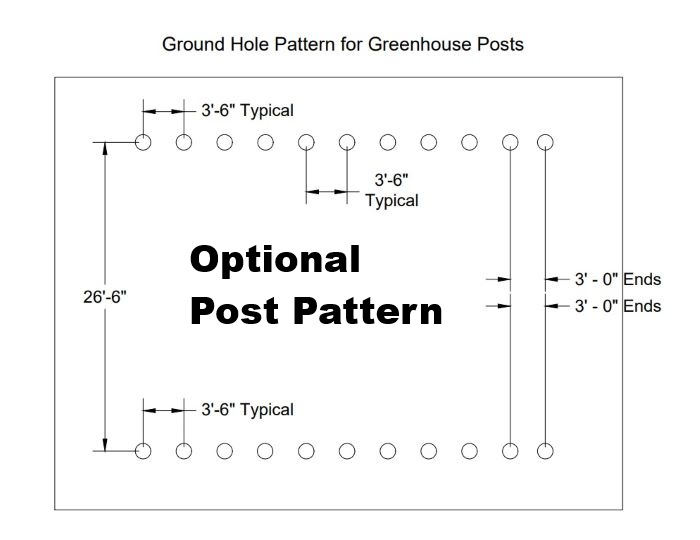

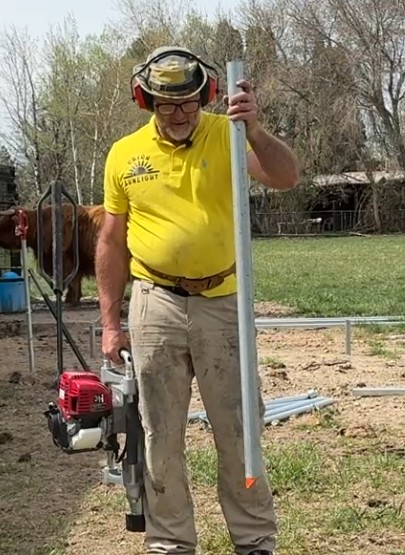

| 48mm Round Ground Posts (~42") | 18 |

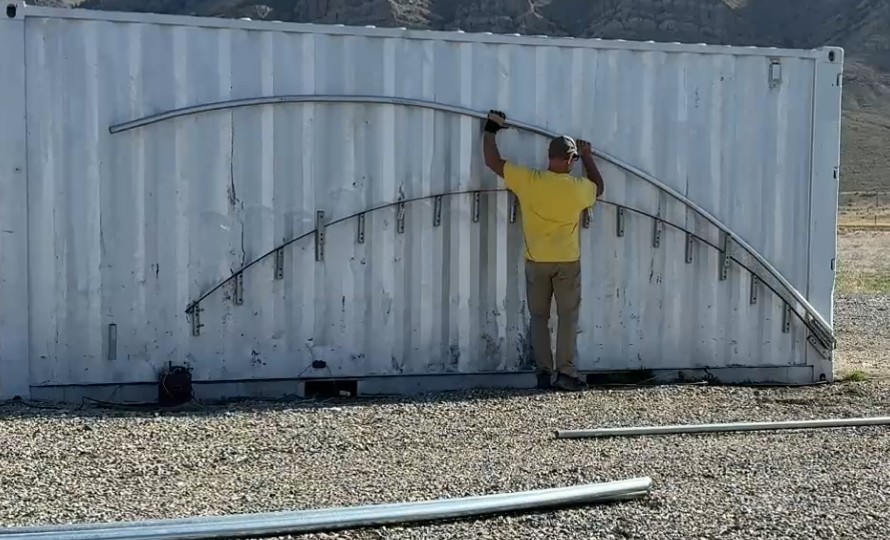

| 48mm Galvanized half-hoops | 18 |

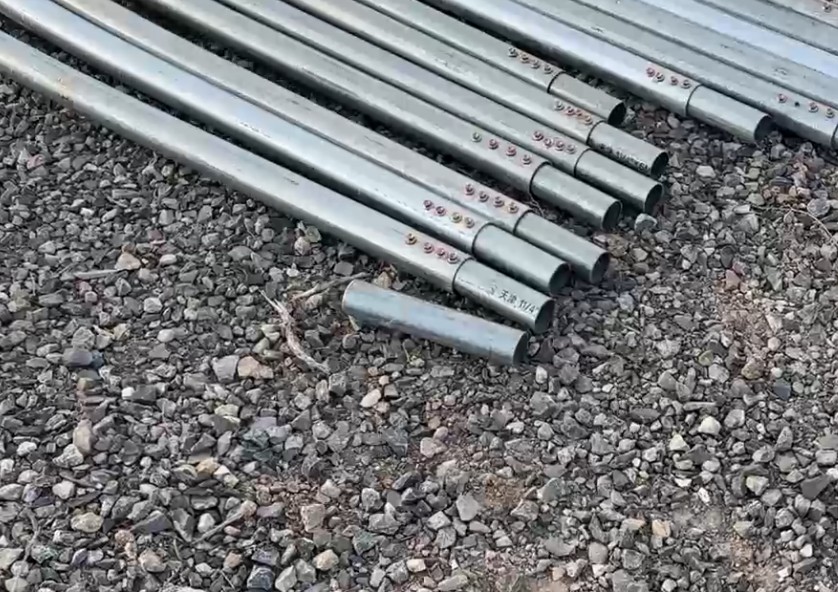

| 40mm Hoop Inserts (or swaged ends) | 18 |

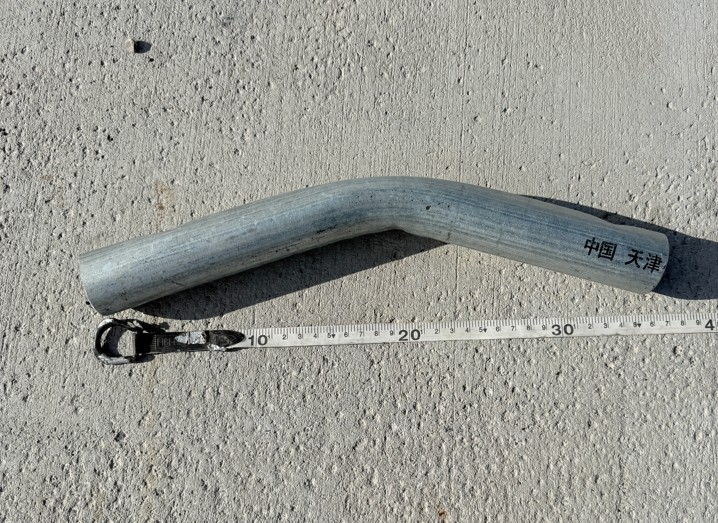

| Bent Top Truss Connectors | 9 |

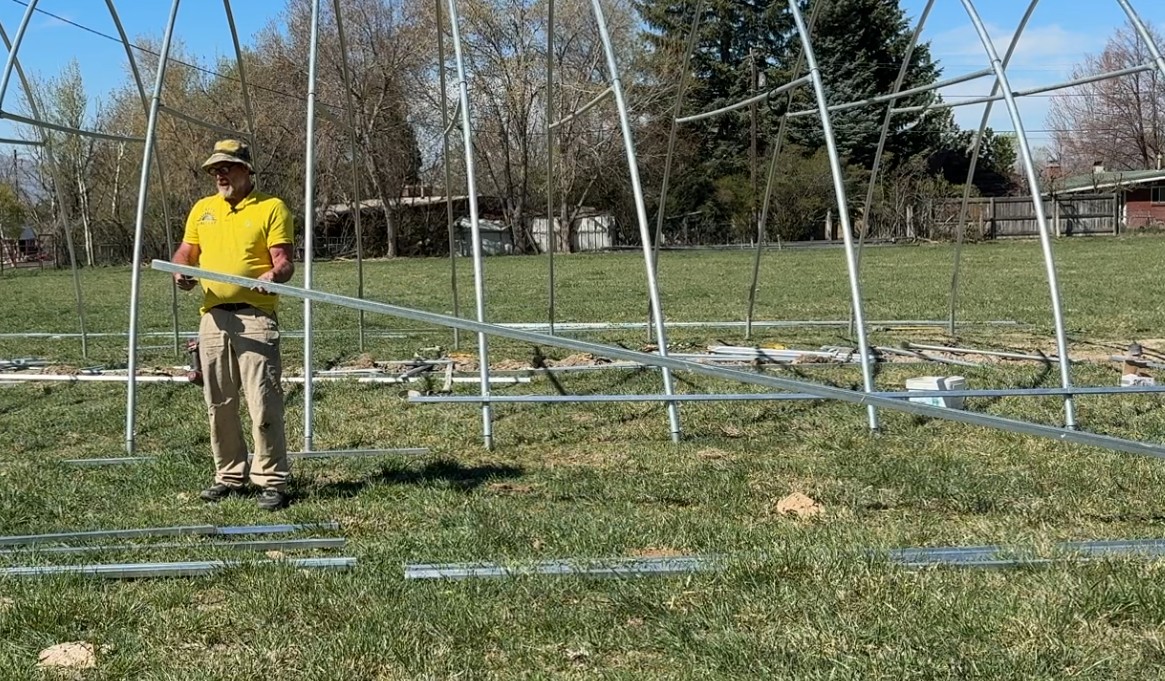

| 40mm Square Tubing (19' - endwalls/ridge) | 31 |

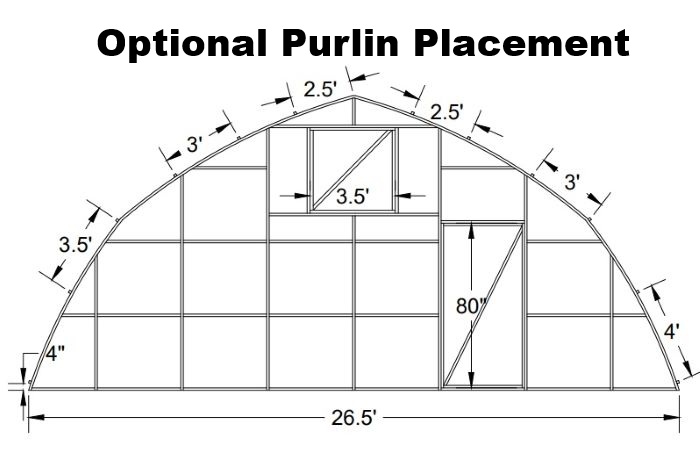

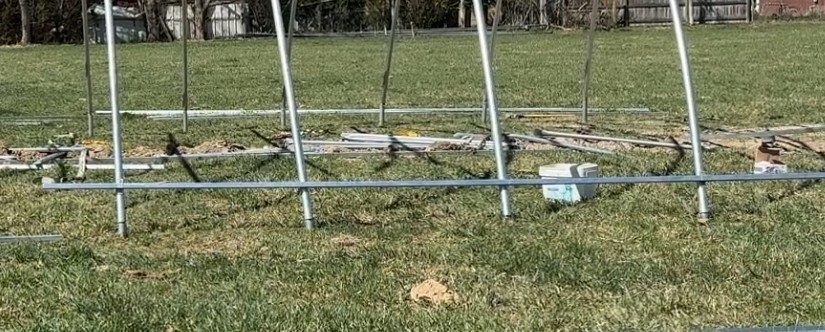

| 30mm Square Tubing (19' - for purlins) | 24 |
| 6mm 4-Layer Polycarbonate Panels (6.9' × 19') | 16 |
| J-Channel (19') | 10 |
| 2-Part Butt-Joint Connectors (19') | 14 |
| Ridge Cap (140° 2 to 2.5 meter) | 5 |
| 2.5m Galvanized Steel Endwall Trim | 10 |
| Purlin Connectors (use existing 40 mm tube) | 12 |

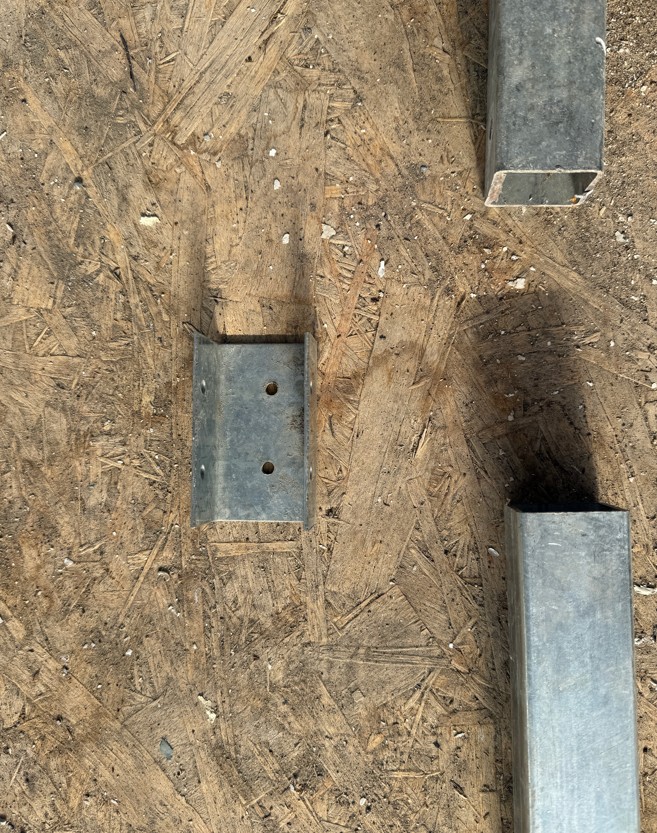

| 30 mm Hat Brackets | 108 |
| 40 mm Hat Brackets | 9 |
| Mending Plates | 100 |
| Large L Brackets | 150 |
| Small L Brackets | 100 |
| Vent and Door Hinges | 10 |
| Vent and Door Latches | 8 |
| Door/Vent Handles | 4 |
| PC Compatable Neutral Silicon Caulking | 7 |
| Aluminum Tape (1" × 164') | 2 |
| You'll need to buy Cable | 300-500 ft |
| You'll need to buy Crimp Ferrules | 50-100 |
The ~1,030 ft2 tube trussed 27'X38' kit on ~45.5" centers for $10,200
Customization
You can modify these kits based upon your needs. For instance, you can set the hoop-to-hoop spacing a little wider and/or make the hoops themselves wider and make your greenhouse larger with the same materials in the kit by spending a small amount more for additional polycarbonate. We can discuss this and other options if you call us.
The CatchSunlight Difference
The Federal Government offers greenhouse grants through the USDA and NRCS. In many cases, the high-tunnel greenhouses provided to grant recipients are constructed with polyethylene film coverings. Due to their lightweight construction, these greenhouses exceed a two-year lifespan only about 50% of the time.
Regardless of whether a grant is obtained, our greenhouse kits are engineered with heavier-duty frames and feature polycarbonate panels that withstand extreme wind conditions and do not tear like polyethylene. These structures are designed for long-term durability and are likely to last a lifetime. When factoring in the additional costs of end walls and sidewall materials, our kits are typically comparable in price to polyethylene greenhouses.
Catchsunlight greenhouse kits are delivered complete, providing all necessary components to construct a high-quality, long-lasting greenhouse.
We don't cut corners. Every component is selected for longevity and performance in harsh climates. When you choose CatchSunlight, you're choosing a greenhouse that will outlast and outperform the competition.
Ready to Start Growing?
Choose your kit option and take the first step toward year-round sustainable growing
Also interested in a smaller residential greenhouse? View our 200 square foot greenhouse kits
